RF Viewer -- Low-Cost, Wireless USB Dongle, RF Spectrum Analyzer
PLEASE NOTE THIS PRODUCT IS NO LONGER AVAILABLE OR SUPPORTED

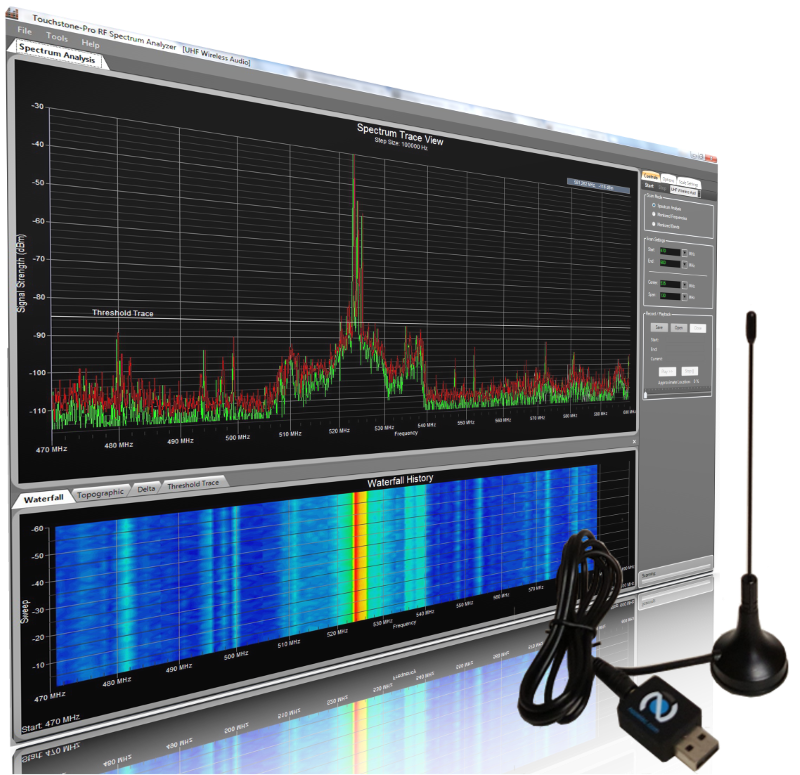

RF Viewer is a PC-based, RF spectrum analyzer that includes both hardware and software. It uses a wireless, USB dongle that interfaces with your Windows PC running Touchstone-Pro or Clear Waves data analysis software. The wideband, RF spectrum analyzer spans a frequency range of 24 MHz up to 1766 MHz, which makes it ideal for use in a broad array of RF-related applications.
RF Viewer re-defines the mobile RF spectrum analyzer. The wireless DVB-T dongle is small and light-weight, and when combined with Touchstone-Pro or Clear Waves software offers performance and features comparable to larger, more expensive devices.
RF Viewer employs a DVB-T dongle based on the Realtek RTL2832U chipset that supports a USB 2.0 interface. It can be used as a Software Defined Radio (SDR). The folks at Osmocom developed software to interact with the chipset and called it RTL-SDR. The Touchstone-Pro and Clear Waves software applications are installed as separate binary files, along with RTL-SDR binaries, support and license files. Nuts About Nets supports RF Viewer by developing PC-based software to enhance the functionality of the device. Both Touchstone-Pro and Clear Waves applications have been designed to work with the RF Viewer wireless dongle.
As a wideband RF spectrum analyzer that spans the frequency range of 24 - 1766 MHz, RF Viewer has many applications. Its features include the following:
- Affordable: RF Viewer is a software plus hardware package that includes a wireless, USB dongle and either Touchstone-Pro ($79 USD) or Clear Waves ($325 USD) software.
- Portable: Light-weight and small in size, connects to USB port on laptop machines running a Microsoft Windows operating system.
- Data Interface: USB cable connects to Windows PC running sophisticated data acquisition and analysis software – Touchstone-Pro and Clear Waves.
- Performance: Comparable to RF spectrum analyzers that cost many times more. Excellent dynamic range, sensitivity, and resolution bandwidth.
- Lifetime, free software upgrades.
- Wide band coverage includes popular sub-1Ghz ISM bands, with maximum frequency reaching to 1766 MHz.
RF Viewer Specifications
| RF Viewer & Touchstone-Pro | RF Viewer & Clear Waves | |
|---|---|---|
| $79 USD | $325 USD | |
| Download link | ||
| Frequency Range (MHz) | 24 - 1766 | 24 - 1766 |
| Max Frequency Span (MHz) | 300 | 300 |
| Sensitivity | -100 dBi (or better) | -100 dBi (or better) |
| Resolution Bandwidth (RBW) | As low as 10 KHz (depending on frequency span) | As low as 10 KHz (depending on frequency span) |
| External Antenna | 5 dBi omni directional, MCX connector | 5 dBi omni directional, MCX connector |
